For the optimal development of your calves: Cosyhome Calf Igloos
AGROTEL Calf Igloos and boxes offer your calves optimal protection from all weather conditions and allow them to grow up healthy and happy.
Previous
Next
Group Igloo, single igloo or calf box
AGROTEL Calf Igloos have proven themselves as a solution for individual and group housing. The fresh air, plenty of light and the high flexibility due to the sophisticated design allow calves to grow up healthily and make the farmer’s daily work easier.
Cosyhome Group Igloo
Cosyhome Single Igloo
Cosyhome Calf Box
Cosyhome Veranda
Cosyhome Group Igloo
The Cosyhome Group Igloo consists of:
- A dimensionally stable, galvanized steel frame.
- Robust sidewalls made of PP double-wall sheets.
- A fabric-reinforced membrane cover for high light and appropriate heat radiation
- Expandable spout with separating, feeding and self-locking grids
- Facilitation of work by generously designed service openings.

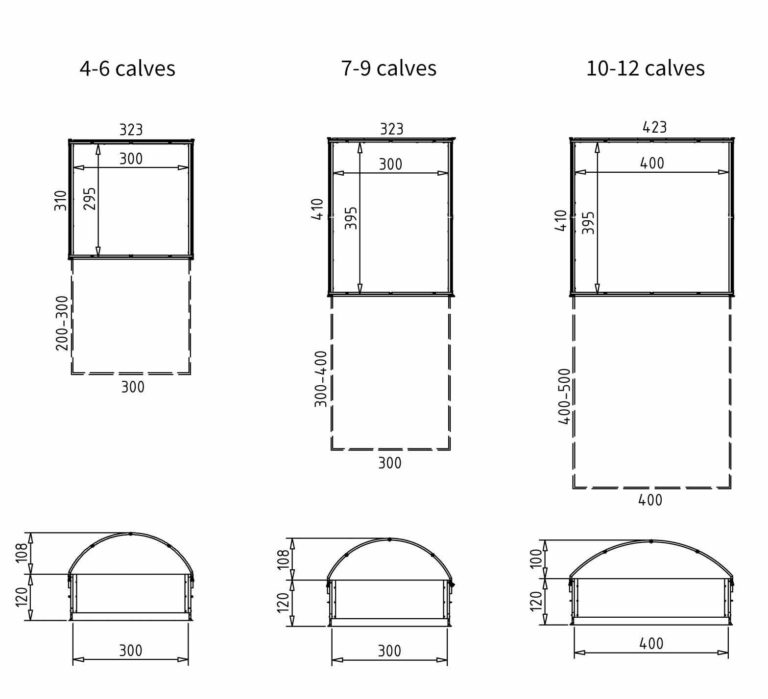

Model Overview
The AGROTEL Cosyhome Group Igloos are available in 3 sizes depending on your needs.
Cosyhome Single Igloo
The Cosyhome Single Igloo consists of:
- A galvanized steel fence with bucket holder
- A dimensionally stable and UV-resistant fibre-reinforced laminate
- Solid rubber tires for easy transportation
-
Dimensions Igloo + outlet:
Igloo surface: 1.97 m2
Outlet surface: 1.47 m2
Width: 1.39 m
Length: 3.05 m
Height: 1.35 m
Construction
Igloo length: 199 cm
Igloo width: 114 cm
Outlet length: 106 cm
Outlet width: 139 cm
Tilting function for easy muck removal
Cosyhome Calf Box
The Cosyhome Calf Box consists of:
- Galvanized steel front grille with bucket holder and bracket for pacifier
- Hygienic plastic sidewalls and plastic slatted floor
- Swivelling wheels for comfortable and easy transport
-

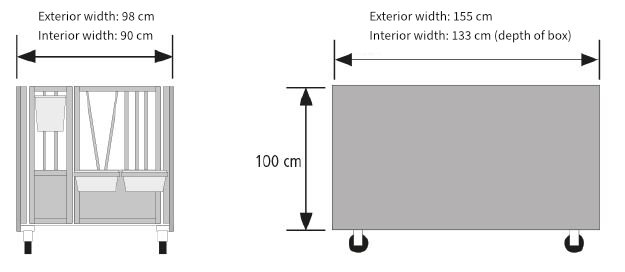

Dimensions:
Length: 1,55 m
Width: 0,98 m
Height: 1,00 m
Construction
Cosyhome Veranda
The Cosyhome Veranda consists of:
- A sturdy construction made of galvanized steel.
- A fabric-reinforced membrane cover for high light transmission and ideal heat dissipation
- 2 pcs. solid rubber tyres for easy transport
- Up to 12 calf feeding places including self-locking security grille
- A side access door
Construction
- Inner dimensions: 5.0 x 5.0 m
- Four-sided canopy construction: 0.81 m
- Outer dimensions: 6.62 m x 6.62 m
References
AGROTEL Calf Igloos and Boxes are used both as an extension to existing stable buildings or as a stand-alone solution.
